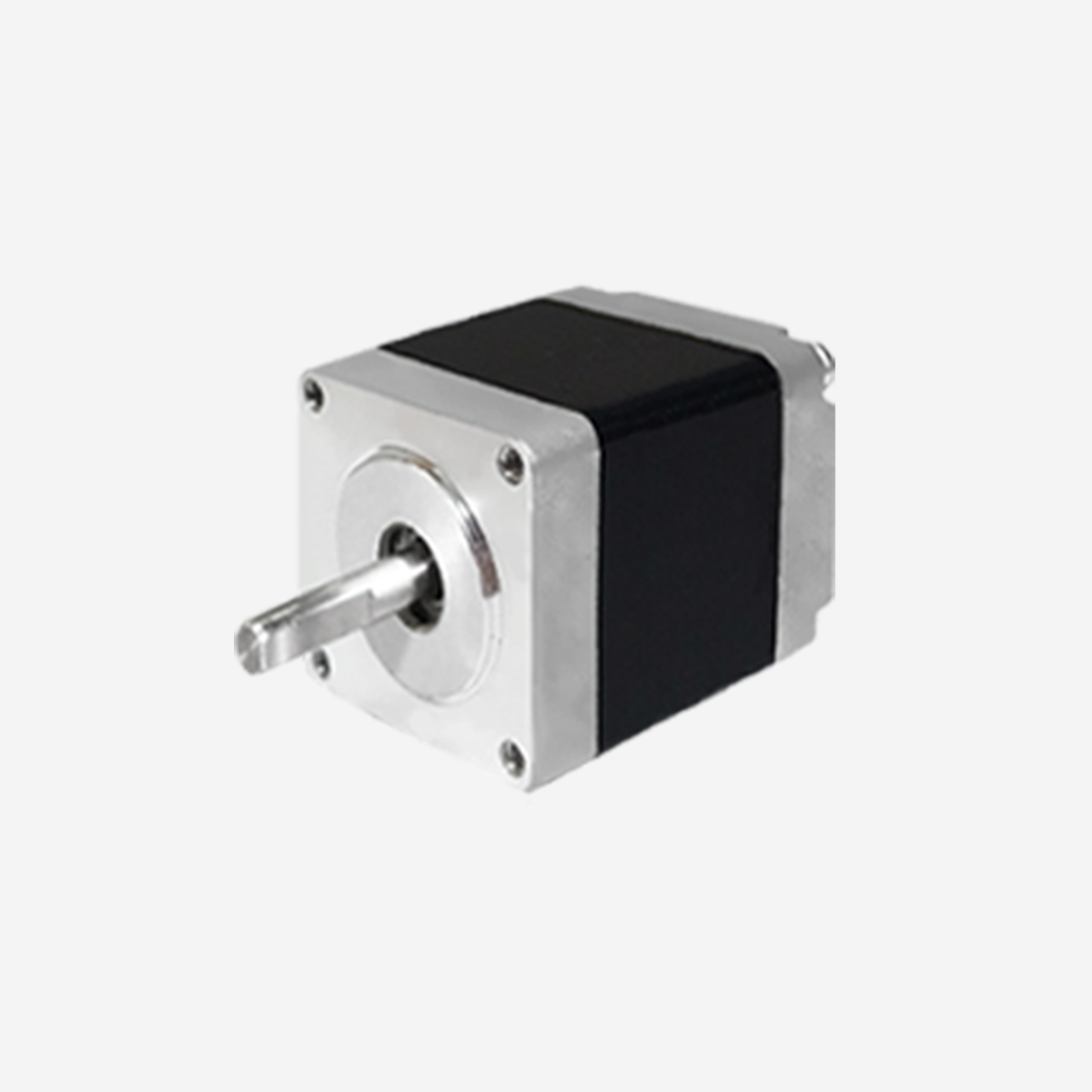

28mm Hybrid Rotary Stepper Motor
- Product id：52
- Color：Silver
- The fabric：Metallic
- Size：28mm
Performance Parameters Overview Precision Step Angle 1.85% Phase Resistance 10% / 20 C Inductance 20% / 1KHz Insulation Class B Duty Cycle S1 Dielectric Strength 500 VAC / 1 KHz / 1 mA / 1 s Insulation Resistance 100 M / 500 VDC Permissible
Performance Parameters
| Overview | |||||||
|---|---|---|---|---|---|---|---|
| Precision | Step Angle | 1.8°±5% | |||||
| Phase Resistance | ±10% / 20 C | ||||||
| Inductance | ±20% / 1KHz | ||||||
| Insulation Class | B | ||||||
| Duty Cycle | S1 | ||||||
| Dielectric Strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||||
| Insulation Resistance | 100 MΩ / 500 VDC | ||||||
|
Permissible Radial Load (at 5mm from the mounting surface) |
Permissible Radial Load (at 10mm from the mounting surface) |
Permissible Radial Load |
Permissible Radial Load (at 20mm from the mounting surface) |
||||
| 50N | 35N | 25N | 20N | ||||
| Performance Parameters | |||||||
| Model |
Rated Current/phase (A) |
Phase Resistance (Ω) |
Inductance (mH) |
Holding Torque (N·m) |
Rotor Inertia (g·cm2) |
Body Length (mm) |
Weight (g) |
| 11H2033 | 1 | 2.1 | 1.2 | 0.06 | 9 | 33.5 | 110 |
| 11H2045 | 1 | 4.1 | 3.2 | 0.1 | 13 | 45 | 200 |
| 11H2052 | 1 | 4.7 | 3.9 | 0.14 | 18 | 52 | 280 |
| Material | |||||||
| End Cap | Die-cast Aluminum Alloy | ||||||
| Bearing | Deep Groove Ball Bearing | ||||||
| Permanent Magnet | Sintered Neodymium-Iron-Boron | ||||||
| Shaft | stainless steel | ||||||
| Lead Wire | UL 3265, 26 AWG | ||||||
