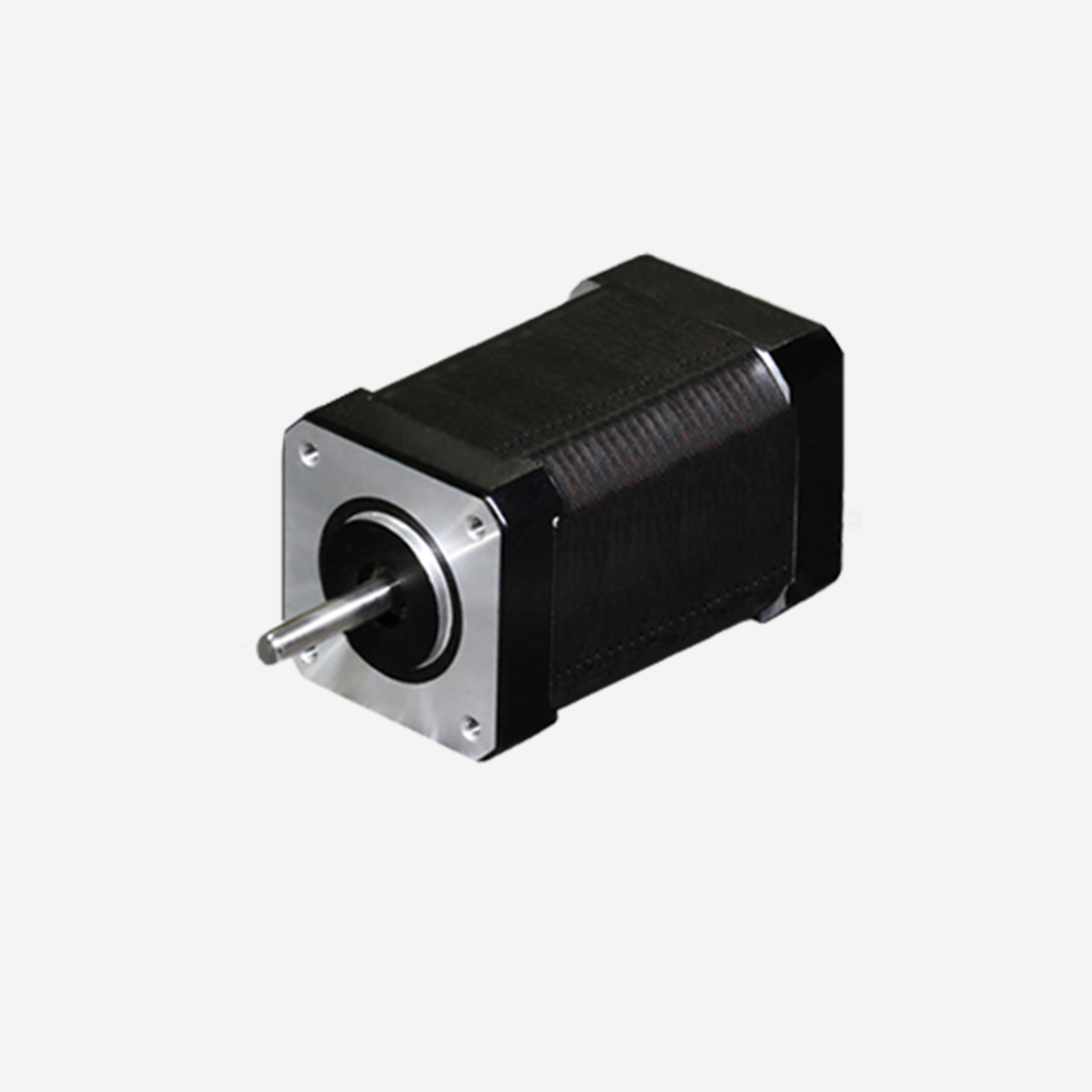

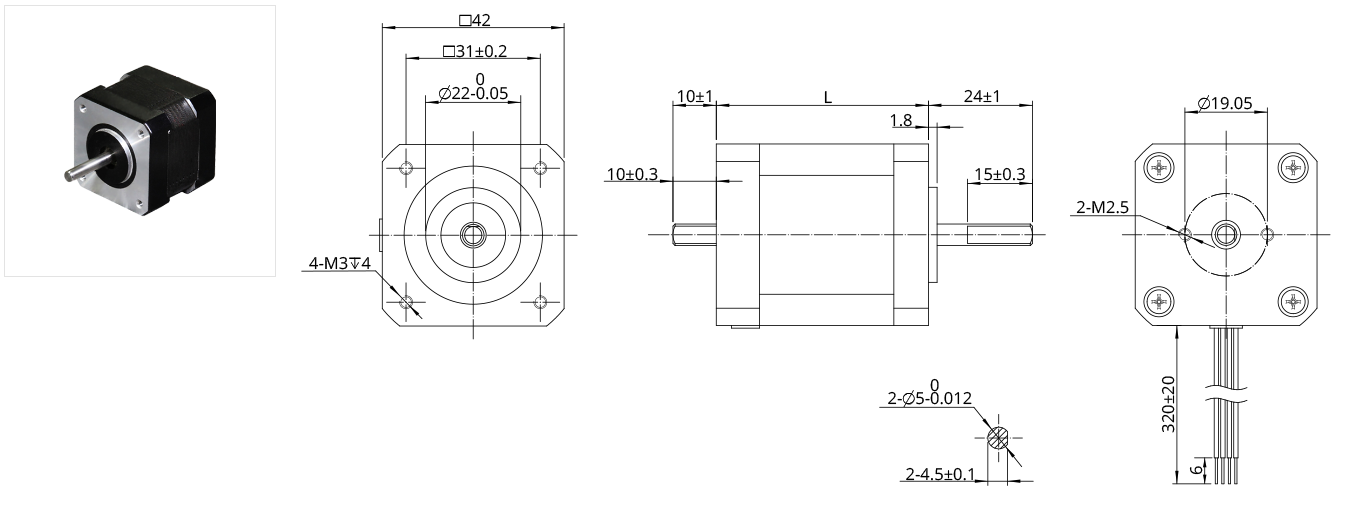

42mm Hybrid Rotary Stepper Motor
- Product id：54
- Color：Black
- The fabric：Metal
- Size：42mm
Performance parameters Overview precision Step angle 1.85% resistance 10% / 20 C inductance 20% / 1KHz Insulation rating B Work schedule S1 Dielectric strength 500 VAC / 1 KHz / 1 mA / 1 s Insulation resistance 100 M / 500 VDC Allowable rad
Performance parameters
| Overview | |||||||
|---|---|---|---|---|---|---|---|
| precision | Step angle | 1.8°±5% | |||||
| resistance | ±10% / 20 C | ||||||
| inductance | ±20% / 1KHz | ||||||
| Insulation rating | B | ||||||
| Work schedule | S1 | ||||||
| Dielectric strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||||
| Insulation resistance | 100 MΩ / 500 VDC | ||||||
|
Allowable radial load (5mm from mounting surface) |
Allowable radial load (10mm from mounting surface) |
Allowable radial load (15mm from mounting surface) |
Allowable radial load (20mm from mounting surface) |
||||
| 50N | 40N | 25N | 20N | ||||
| Performance parameters | |||||||
| Model |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
Holding moment (N··) |
Rotor inertia (g·· cm2) |
Fuselage length (mm) |
Weight (g) |
| 17H2031 | 1.2 | 1.7 | 2.3 | 0.16 | 23 | 31 | 200 |
| 17H2034 | 1.2 | 2.1 | 2.7 | 0.25 | 25 | 34 | 230 |
| 17H2041 | 1.2 | 2.4 | 4.7 | 0.4 | 54 | 41 | 300 |
| 17H2049 | 2 | 1.3 | 2 | 0.48 | 77 | 49 | 360 |
| 17H2061 | 2 | 1.7 | 3.6 | 0.72 | 110 | 61 | 500 |
| material | |||||||
| End caps | Die-cast aluminum alloy | ||||||
| bearing | Deep groove ball bearings | ||||||
| Permanent magnets | Sintered NdFeB | ||||||
| axis | stainless steel | ||||||
| Leadouts | UL 3265, 26/24 AWG | ||||||
