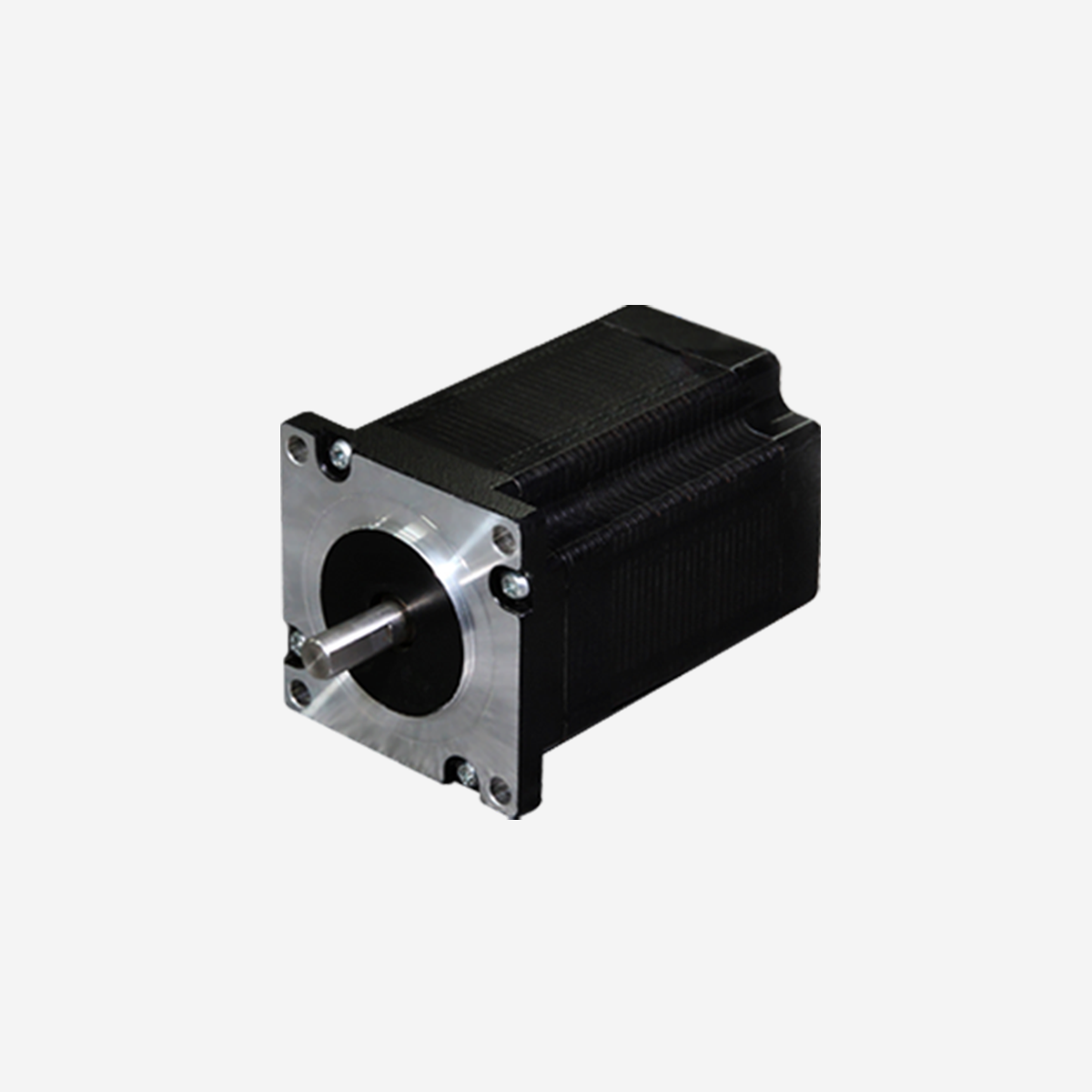

57mm Hybrid Rotary Stepper Motor
- Product id：55
- Color：Black
- The fabric：Metal
- Size：57mm

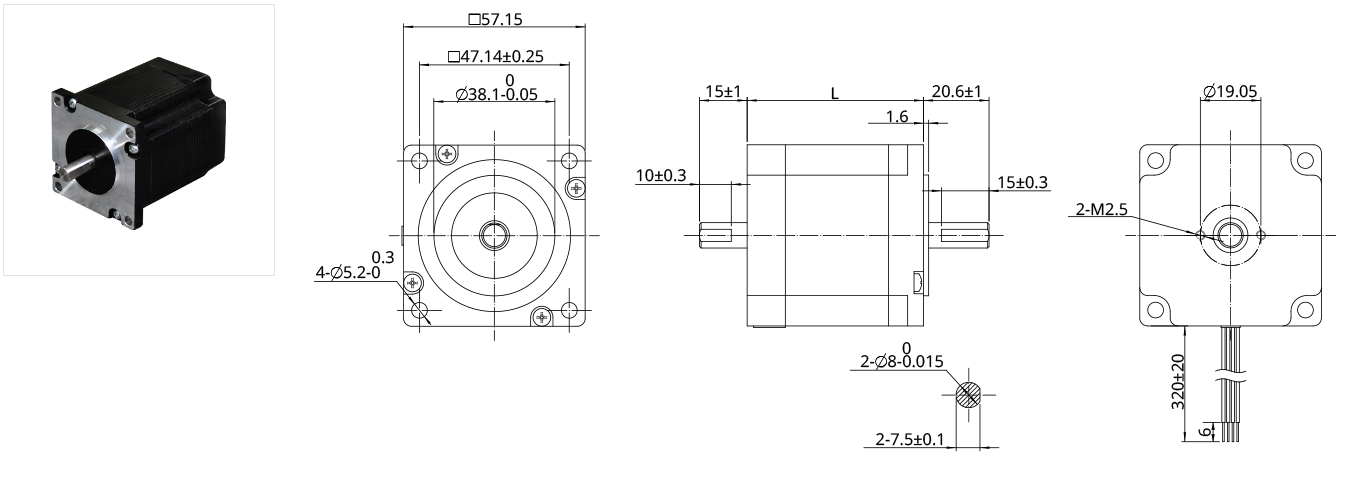

Performance parameters Overview precision Step angle 1.85% resistance 10% / 20 C inductance 20% / 1KHz Insulation rating B Work schedule S1 Dielectric strength 500 VAC / 1 KHz / 1 mA / 1 s Insulation resistance 100 M / 500 VDC Allowable rad
Performance parameters
| Overview | |||||||
|---|---|---|---|---|---|---|---|
| precision | Step angle | 1.8°±5% | |||||
| resistance | ±10% / 20 C | ||||||
| inductance | ±20% / 1KHz | ||||||
| Insulation rating | B | ||||||
| Work schedule | S1 | ||||||
| Dielectric strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||||
| Insulation resistance | 100 MΩ / 500 VDC | ||||||
|
Allowable radial load (5mm from mounting surface) |
Allowable radial load (10mm from mounting surface) |
Allowable radial load (15mm from mounting surface) |
Allowable radial load (20mm from mounting surface) |
||||
| 180N | 130N | 100N | 90N | ||||
| Performance parameters | |||||||
| Model |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
Holding moment (N··) |
Rotor inertia (g·· cm2) |
Fuselage length (mm) |
Weight (g) |
| 23H2042 | 1 | 4.2 | 9 | 0.6 | 140 | 42 | 460 |
| 23H2045 | 1 | 4.5 | 12 | 0.8 | 180 | 45 | 520 |
| 23H2051 | 2 | 1.5 | 4.4 | 1 | 240 | 51 | 640 |
| 23H2055 | 2 | 1.6 | 5.2 | 1.2 | 280 | 55 | 720 |
| 23H2065 | 3 | 0.9 | 2.7 | 1.6 | 350 | 65 | 860 |
| 23H2076 | 4 | 0.6 | 2.4 | 2 | 480 | 76 | 1060 |
| 23H2100 | 5 | 0.46 | 2.3 | 3 | 720 | 100 | 1500 |
| material | |||||||
| End caps | Die-cast aluminum alloy | ||||||
| bearing | Deep groove ball bearings | ||||||
| Permanent magnets | Sintered NdFeB | ||||||
| axis | stainless steel | ||||||
| Leadouts | UL 3265, 22/20 AWG | ||||||
