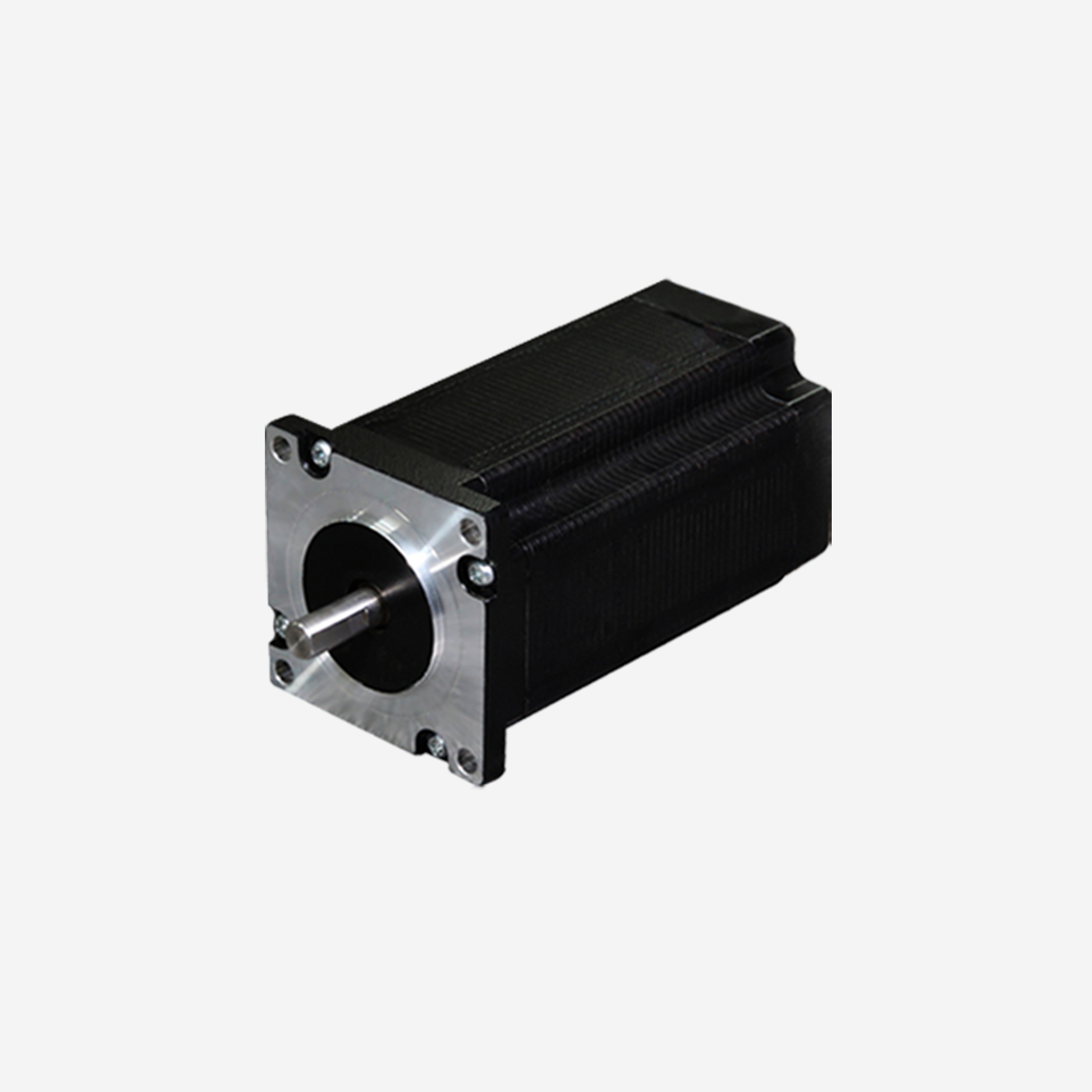

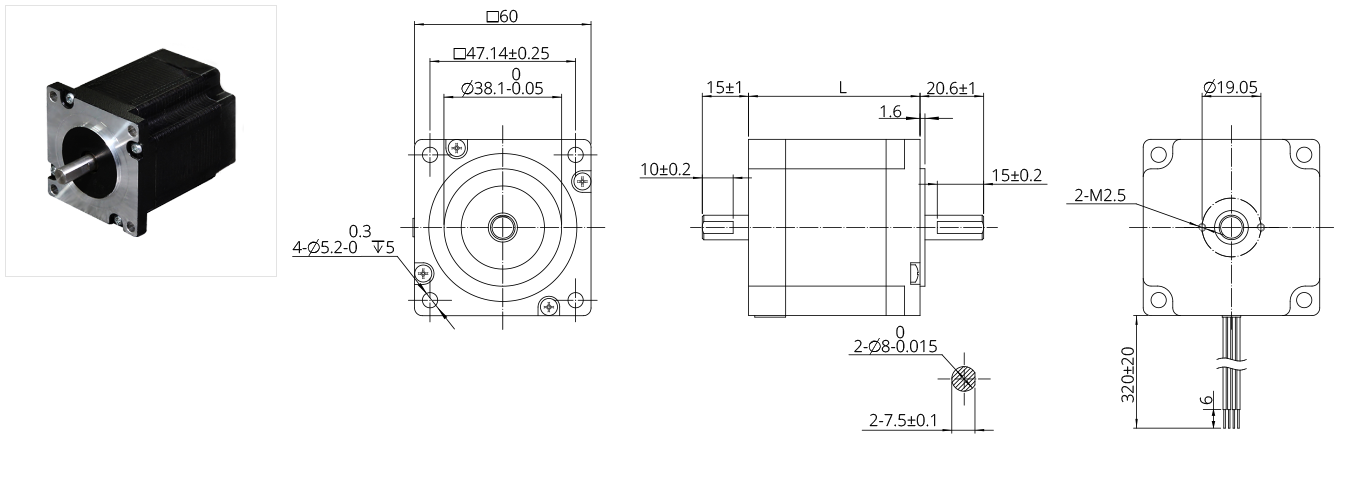

60mm Hybrid Rotary Stepper Motor
- Product id：56
- Color：Black
- The fabric：Metal
- Size：60mm
Performance parameters 概况 precision Step angle 1.85% resistance 10% / 20 C inductance 20% / 1KHz Insulation rating B Work schedule S1 介电强度 500 VAC / 1 KHz / 1 mA / 1 s Insulation resistance 100 M / 500 VDC Allowable radial load
Performance parameters
| 概况 | |||||||
|---|---|---|---|---|---|---|---|
| precision | Step angle | 1.8°±5% | |||||
| resistance | ±10% / 20 C | ||||||
| inductance | ±20% / 1KHz | ||||||
| Insulation rating | B | ||||||
| Work schedule | S1 | ||||||
| 介电强度 | 500 VAC / 1 KHz / 1 mA / 1 s | ||||||
| Insulation resistance | 100 MΩ / 500 VDC | ||||||
|
Allowable radial load (5mm from mounting surface) |
Allowable radial load (10mm from mounting surface) |
Allowable radial load (15mm from mounting surface) |
Allowable radial load (20mm from mounting surface) |
||||
| 210N | 170N | 140N | 120N | ||||
| Performance parameters | |||||||
| Model |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
保持力矩 (N·m) |
Rotor inertia (g·· cm2) |
Fuselage length (mm) |
Weight (g) |
| 24H2047 | 2 | 1.5 | 3.4 | 1 | 240 | 47 | 600 |
| 24H2056 | 3 | 0.8 | 2.3 | 1.5 | 340 | 56 | 800 |
| 24H2068 | 4 | 0.6 | 1.9 | 2.1 | 490 | 68 | 1000 |
| 24H2085 | 5 | 0.4 | 1.8 | 3 | 690 | 85 | 1300 |
| 材料 | |||||||
| End caps | Die-cast aluminum alloy | ||||||
| bearing | Deep groove ball bearings | ||||||
| Permanent magnets | Sintered NdFeB | ||||||
| axis | 不锈钢 | ||||||
| Leadouts | UL 3265, 22/20 AWG | ||||||
