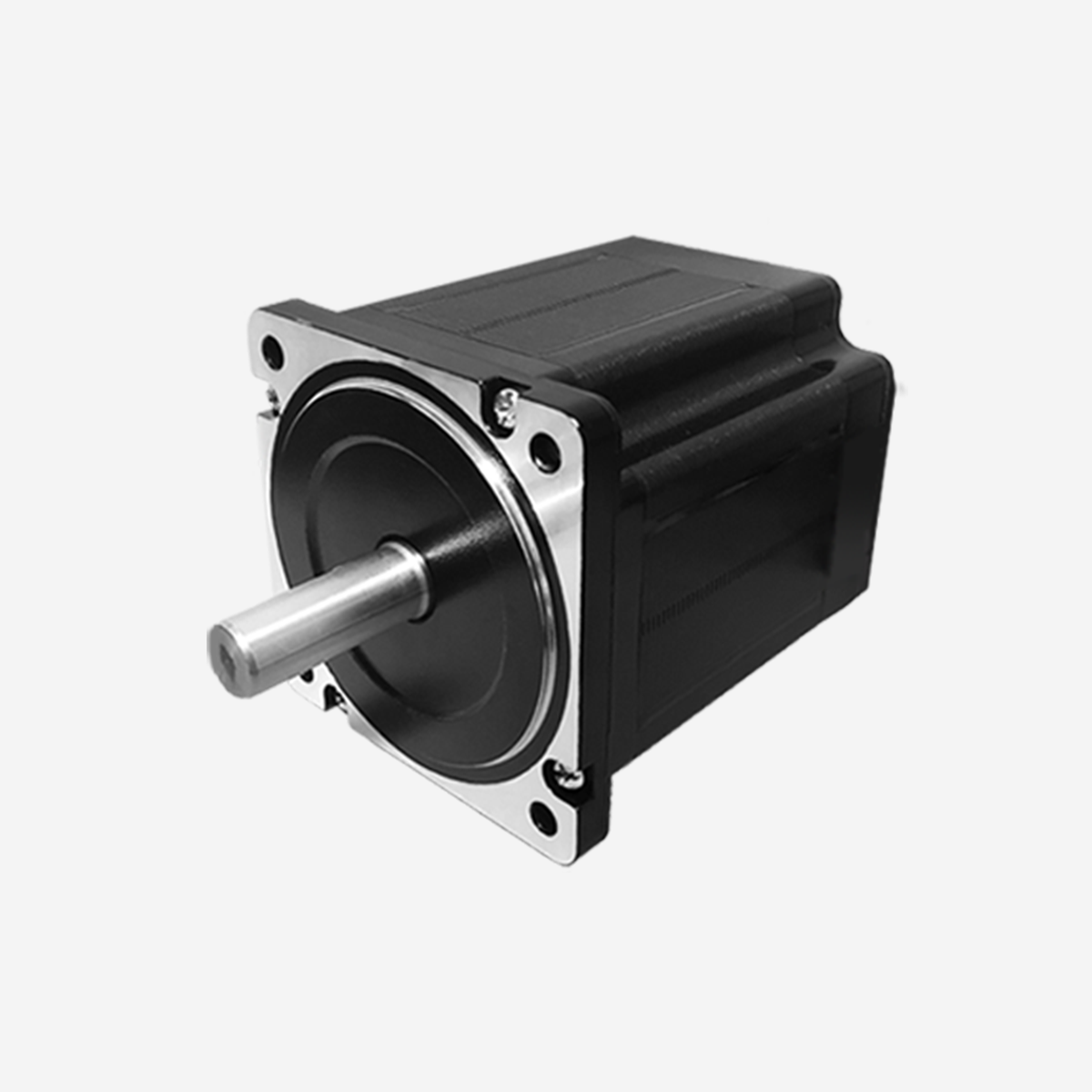

86mm Hybrid Rotary Stepper Motor
- Product id：57
- Color：Black
- The fabric：Metal
- Size：86mm
Performance parameters Overview precision Step angle 1.85% resistance 10% / 20 C inductance 20% / 1KHz Insulation rating B Work schedule S1 Dielectric strength 500 VAC / 1 KHz / 1 mA / 1 s Insulation resistance 100 M / 500 VDC Allowable rad
Performance parameters
| Overview | |||||||
|---|---|---|---|---|---|---|---|
| precision | Step angle | 1.8°±5% | |||||
| resistance | ±10% / 20 C | ||||||
| inductance | ±20% / 1KHz | ||||||
| Insulation rating | B | ||||||
| Work schedule | S1 | ||||||
| Dielectric strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||||
| Insulation resistance | 100 MΩ / 500 VDC | ||||||
|
Allowable radial load (5mm from mounting surface) |
Allowable radial load (10mm from mounting surface) |
Allowable radial load (15mm from mounting surface) |
Allowable radial load (20mm from mounting surface) |
||||
| 600N | 550N | 480N | 390N | ||||
| Performance parameters | |||||||
| Model |
Current (A) |
Resistance (Ω) |
Inductance (mH) |
Holding moment (N··) |
Rotor inertia (g·· cm2) |
Fuselage length (mm) |
Weight (g) |
| 34H2060 | 3 | 1 | 6 | 3 | 1100 | 60.5 | 1600 |
| 34H2075 | 4.5 | 0.6 | 4.2 | 4.5 | 1800 | 75 | 2100 |
| 34H2098 | 6 | 0.5 | 4 | 7 | 2800 | 96.5 | 2900 |
| material | |||||||
| End caps | Die-cast aluminum alloy | ||||||
| bearing | Deep groove ball bearings | ||||||
| Permanent magnets | Sintered NdFeB | ||||||
| axis | stainless steel | ||||||
| Leadouts | UL 3265, 18 AWG | ||||||
