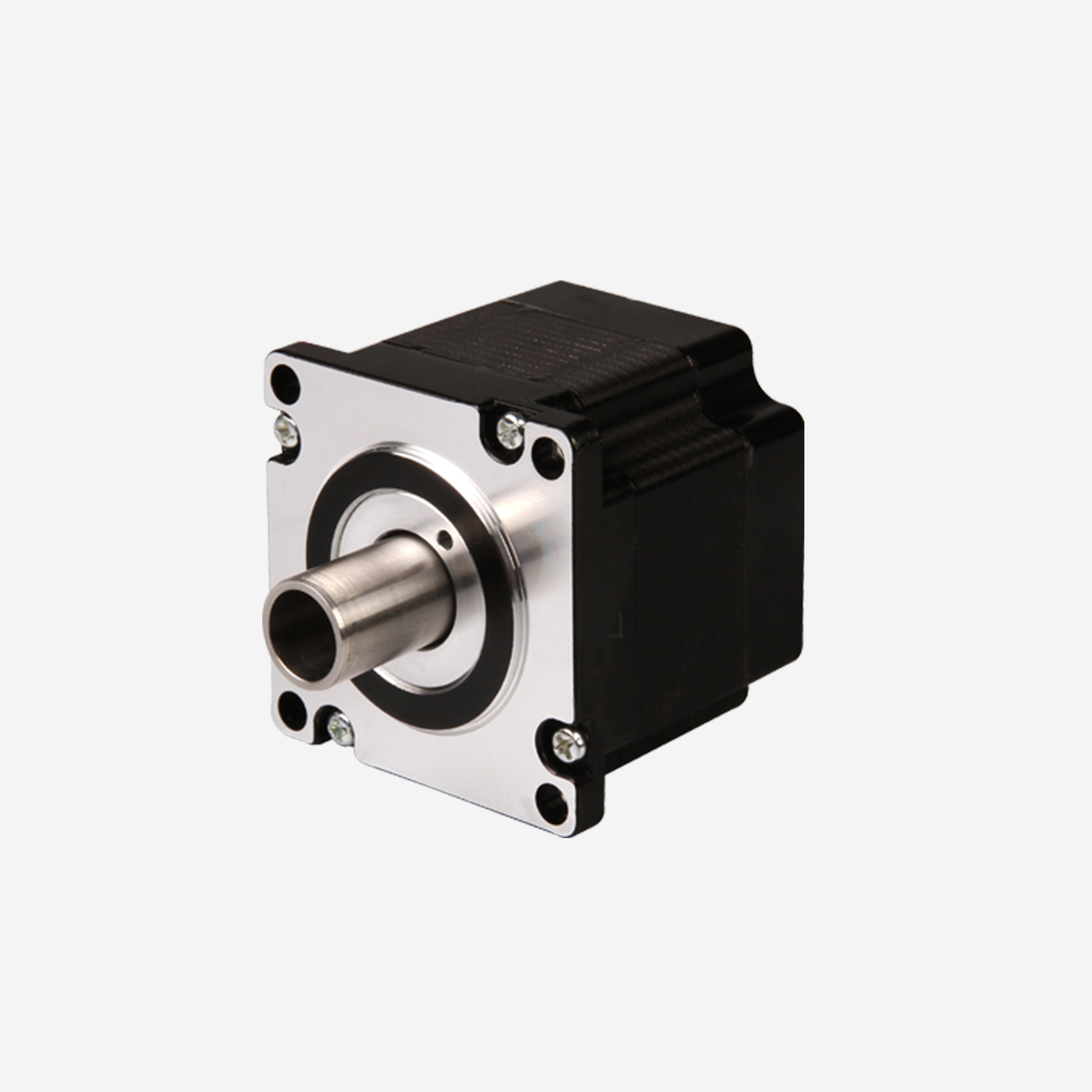

60mm hybrid hollow shaft stepper motor
- Product id：66
- Color：Black
- The fabric：metal
- Size：60mm
Motor specifications Model Rated Voltage (V) Current (Rms A) Resistance () Inductance (mH) Holding moment (N) Positioning moment (N) Motor length (mm) 24HS2047 1.52 4 0.4 0.9 0.9 0.03 47 24HS2068 2.4 4 0.6 1.9 1.8 0.06 68 Exterior Dimension
Motor specifications
| Model |
Rated Voltage (V) |
Current (Rms A) |
Resistance (Ω) |
Inductance (mH) |
Holding moment (N··) |
Positioning moment (N··) |
Motor length (mm) |
|---|---|---|---|---|---|---|---|
| 24HS2047 | 1.52 | 4 | 0.4 | 0.9 | 0.9 | 0.03 | 47 |
| 24HS2068 | 2.4 | 4 | 0.6 | 1.9 | 1.8 | 0.06 | 68 |
Exterior Dimension Drawing
![Size 24[60mm]](https://www.dingsmotion.cn/uploadfile/2024/0711/20240711020305128.jpg)
Moment frequency curve
Test conditions
The above curves were tested with a DS-OLS8-FRS4 bipolar constant current chopper stepper driver at 48Vdc. Different test conditions and operating conditions will lead to different performance, reasonable acceleration and deceleration will help to improve the performance of the motor, here for reference. In order to ensure the service life and reliability, it is recommended to leave more than 50% margin when selecting products.
