Product Features:

• Integrated design for reliability and ease of use.
• Standardized design and manufacturing for four specifications: 50, 100, 135, 170; other specifications can be customized.
• Operating ambient temperature ranges from -196°C to +200°C.
• Suitable for vacuum environments up to 1.0x10^-7 Pa.

Vacuum Robots:

• Operable in vacuum environments up to 1.0x10^-7 Pa.
• Temperature resistance up to 200°C.
• Design prioritizes mechanisms and materials, with most components made from stainless steel or materials with equivalent thermal expansion coefficients and low outgassing rates.
• Mainly used in vacuum chambers, high-temperature chambers, and high-cleanliness environments.

Application Instructions:

• Within a dust-free environment, achieves efficient (N-segment speed, N-segment displacement) positioning and excellent operational stability.
• Can accomplish tasks such as film application, component placement, 3D printing, CCD online inspection, soldering, and other areas with special requirements.

Specifications:

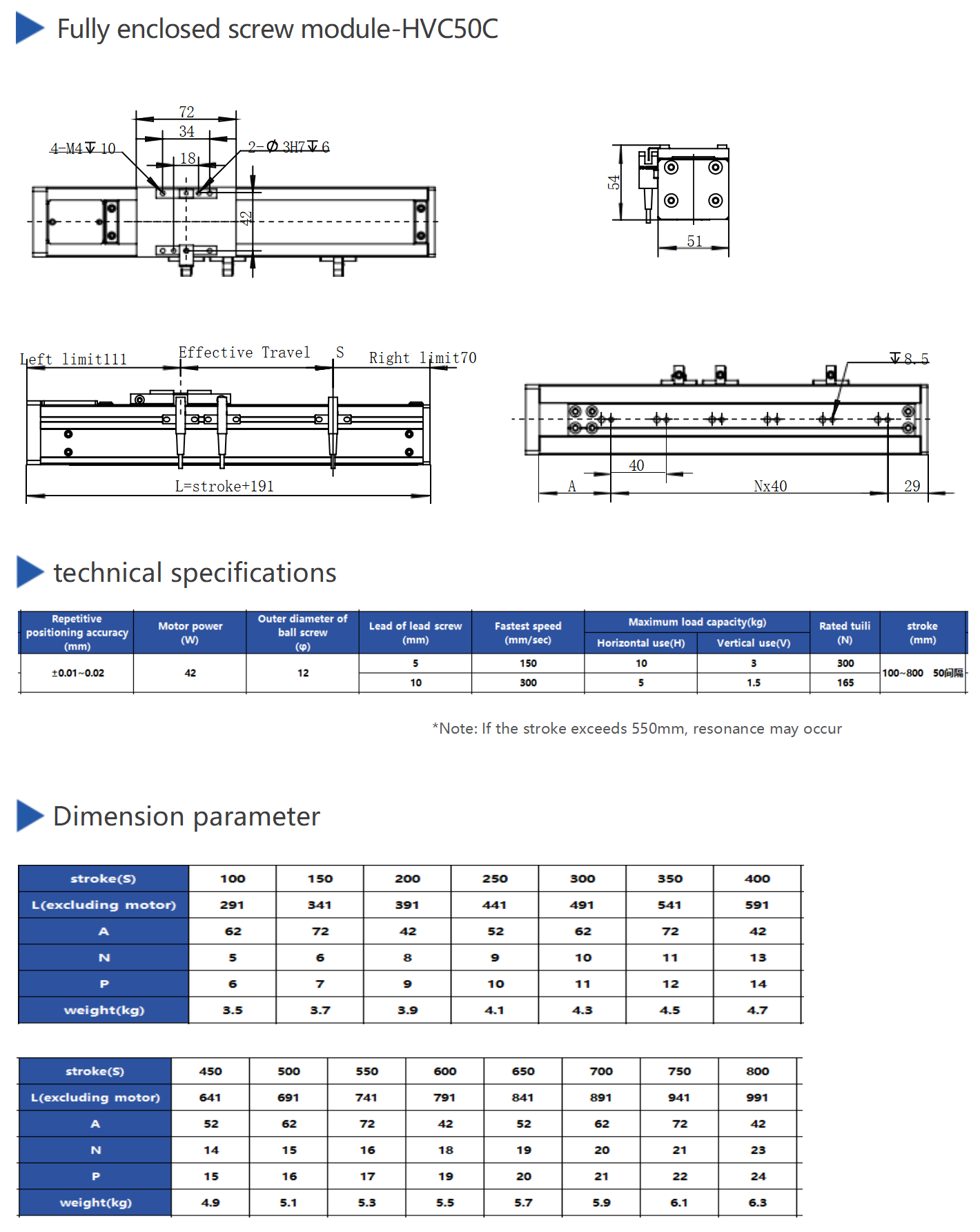

• HVC50C

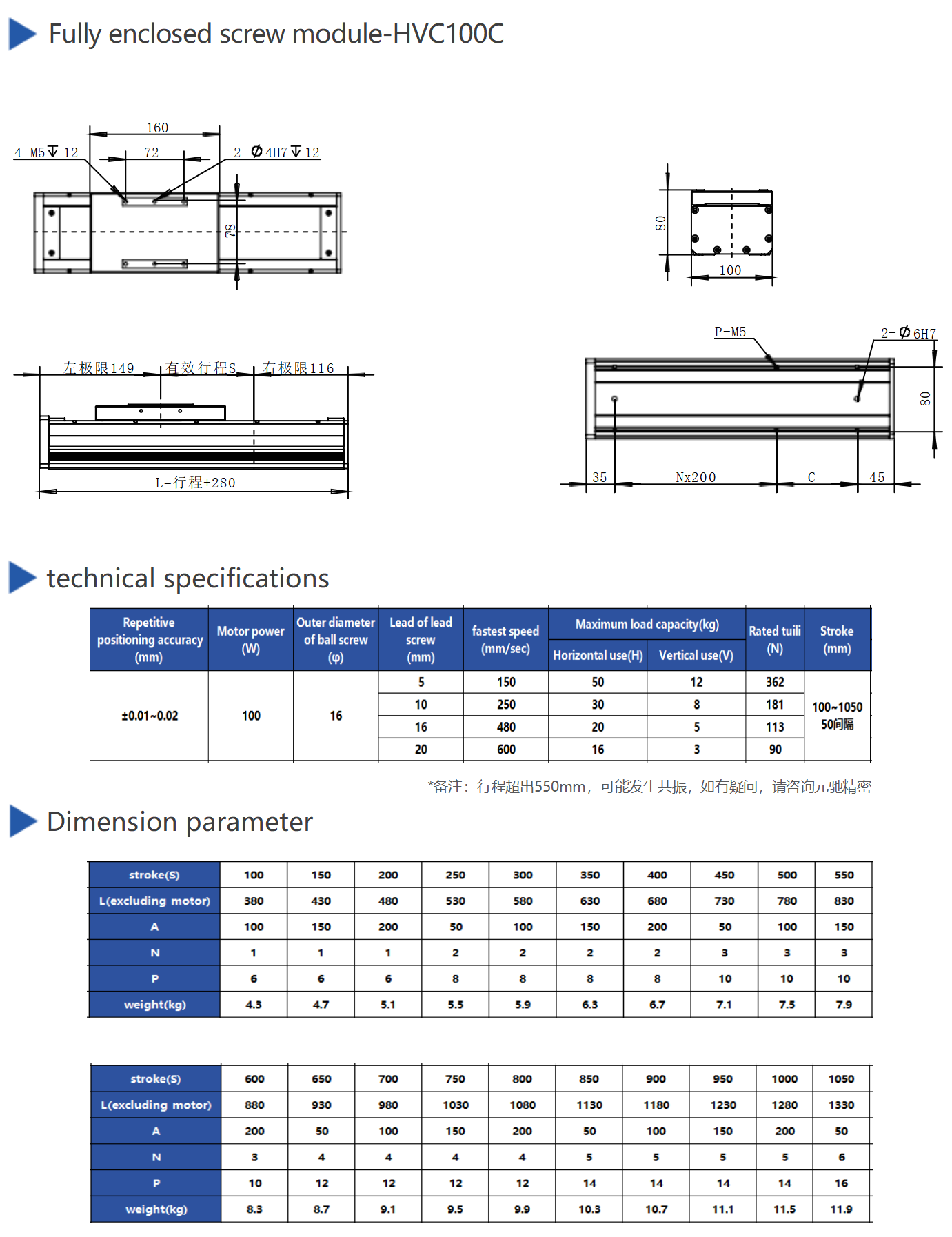

• HVC100C

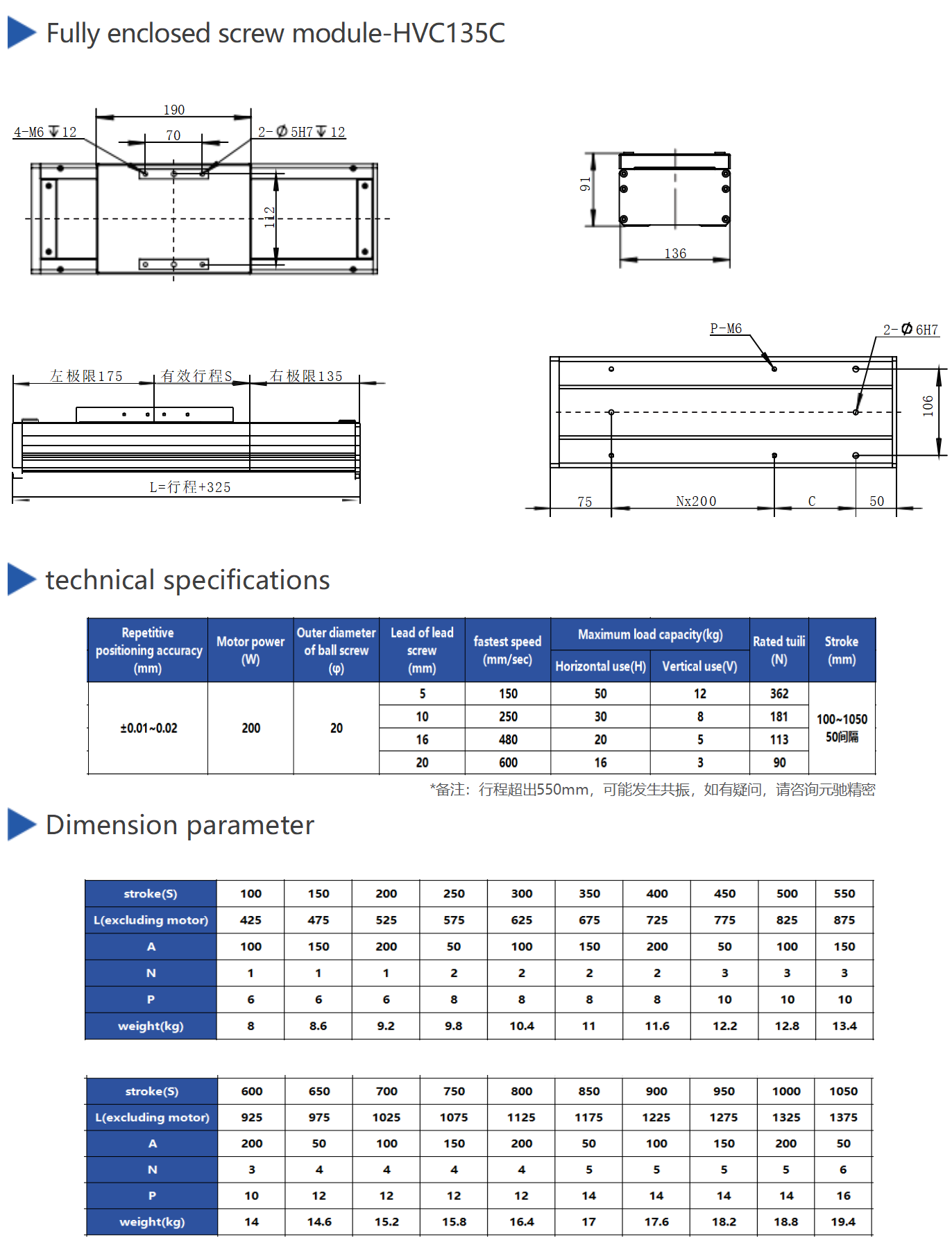

• HVC135C

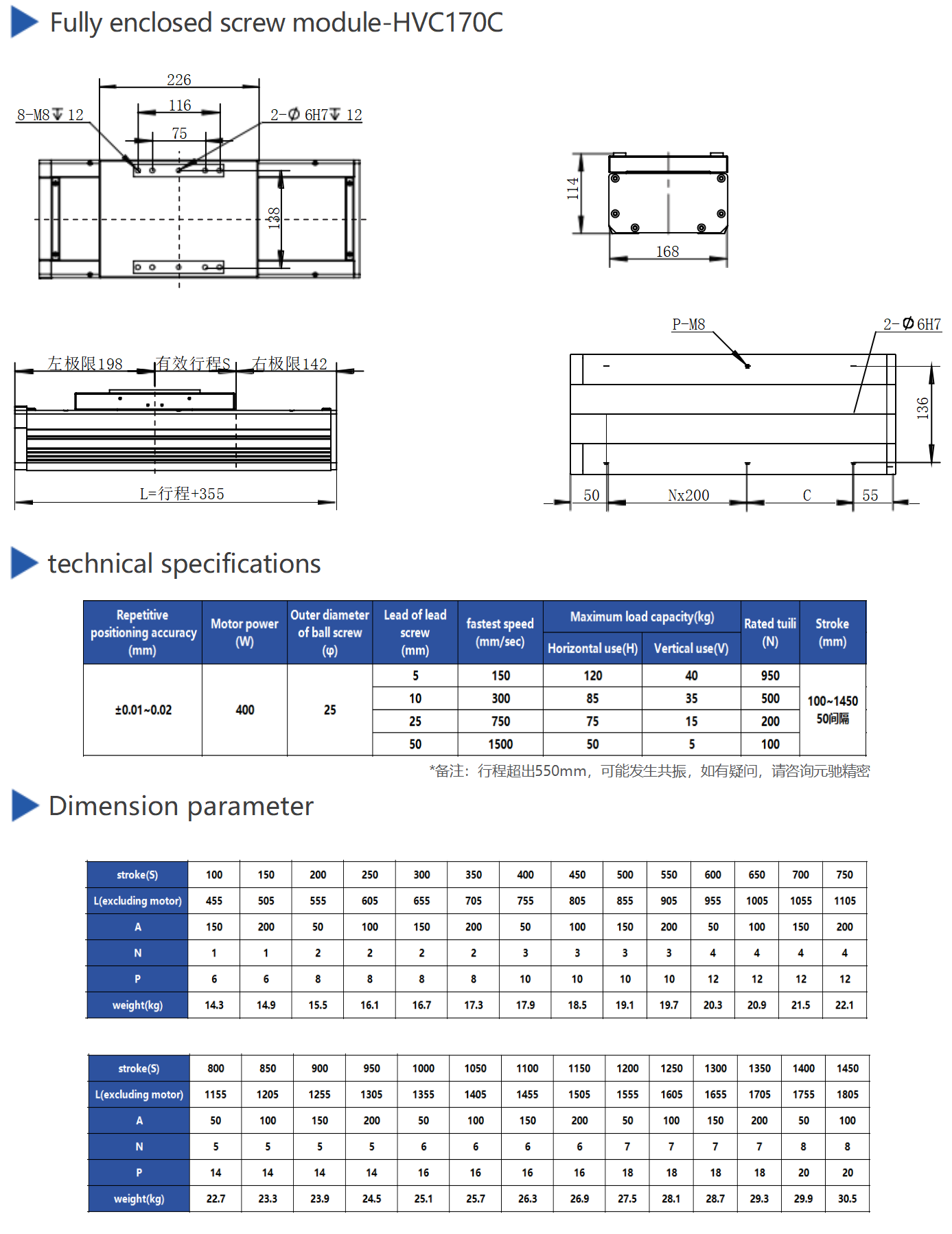

• HVC170C
