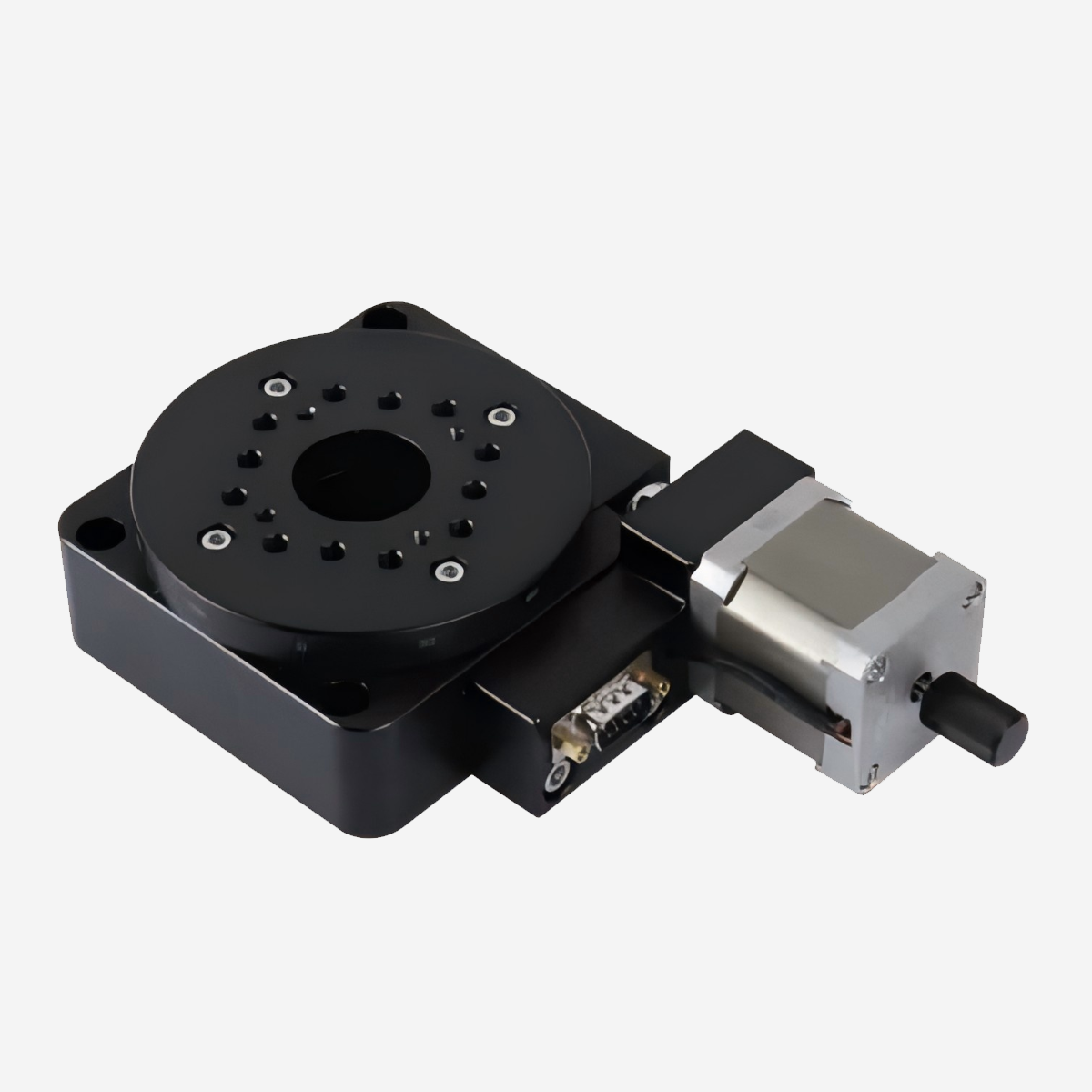

vacuum rotary table
- Product id：60
- Color：Black
- The fabric：Metal
- Size：100、200、300、400
Product Features Integrated design, reliable and easy to use Standardized design and manufacturing of four specifications: 100, 200, 300, 400 Customizable for other specifications Operating temperature range from -196C to +200C Suitable vac
Product Features
Integrated design, reliable and easy to use

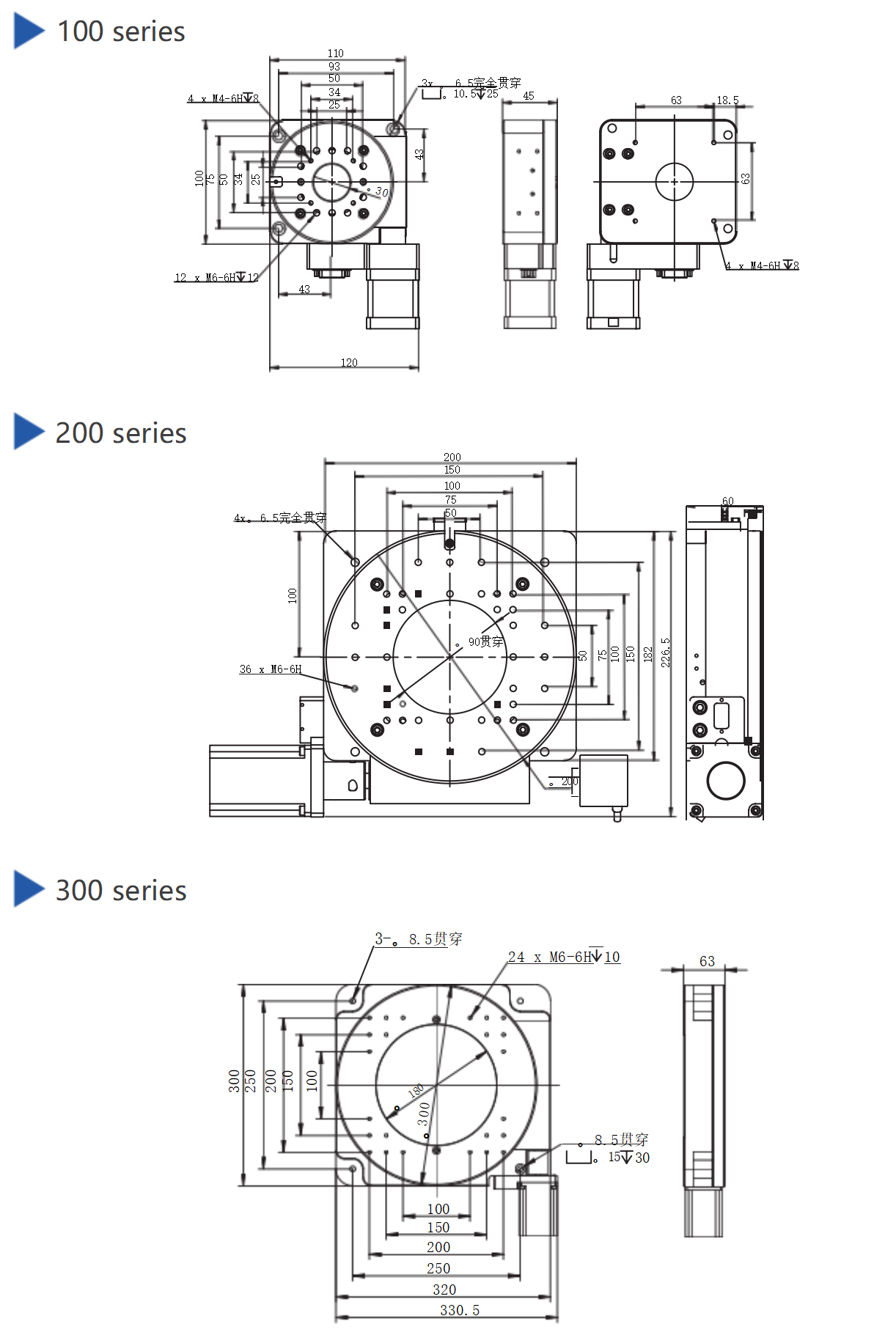

Standardized design and manufacturing of four specifications: 100, 200, 300, 400
Customizable for other specifications
Operating temperature range from -196°C to +200°C
Suitable vacuum degree of 1.0x10-7 Pa
The vacuum rotary table can operate in a vacuum environment of 1.0x10-7 Pa, with a temperature resistance up to 200°C. The design of the vacuum rotary table primarily considers the mechanism and materials. Most components of this product series are made of stainless steel or materials with a similar coefficient of thermal expansion and low outgassing rate. This product series is mainly used in vacuum chambers, high-temperature chambers, and high-cleanliness environments.
Integrated design, reliable and easy to use
Standardized design and manufacturing of four specifications: 100, 200, 300, 400
Customizable for other specifications
Operating temperature range from -196°C to +200°C
Suitable vacuum degree of 1.0x10-7 Pa
The vacuum rotary table can operate in a vacuum environment of 1.0x10-7 Pa, with a temperature resistance up to 200°C. The design of the vacuum rotary table primarily considers the mechanism and materials. Most components of this product series are made of stainless steel or materials with a similar coefficient of thermal expansion and low outgassing rate. This product series is mainly used in vacuum chambers, high-temperature chambers, and high-cleanliness environments.
